Virtual Evaluation of Automotive Interior Ambient Lighting in Early Design

Ambient lighting has evolved into a signature element of modern automotive interiors. It no longer serves merely as functional illumination — it defines brand character, enhances perceived quality, and creates an emotional connection between the vehicle and its occupants. From subtle contour lighting along door trims to dynamic RGB themes integrated into dashboards and consoles, ambient lighting contributes significantly to user experience.

However, evaluating its visual impact during the early concept phase can be challenging, especially when detailed lightguide geometries, LED specifications, and packaging constraints are not yet finalised. This is where Ansys Speos plays a critical role. It enables automotive OEMs and suppliers to virtually design, simulate, and assess interior ambient lighting concepts with high physical accuracy — long before physical prototypes are built.

Section 01The Need for Early Ambient Lighting Evaluation in Automotive Interiors

During the concept and styling phase, lighting requirements are fluid and often undergo multiple iterations. Designers seek rapid answers to key aesthetic and functional questions, such as:

• How does ambient lighting accentuate interior surfaces like door trims, dashboards, center consoles, and instrument panels?
• What is the visual impact of different RGB color combinations under varying interior material finishes?
• Are there unintended reflections or glare from glossy, metallic, or piano-black components?
• How is the lighting perceived from the driver's and passengers' viewpoints?
• Does the lighting create a premium, cohesive atmosphere aligned with brand identity?

Without virtual validation tools, these questions are often answered through time-consuming physical mockups. Late-stage discovery of issues such as non-uniform illumination, glare, or inconsistent color rendering can lead to costly design modifications. By integrating optical simulation early, teams can align styling intent with engineering feasibility, reducing risk and accelerating development cycles.

Section 02Creating Automotive Interior Lighting Systems in Speos

Ansys Speos provides a dedicated optical simulation environment tailored for automotive lighting applications. It allows engineers to create realistic interior lighting models without requiring finalised hardware definitions.

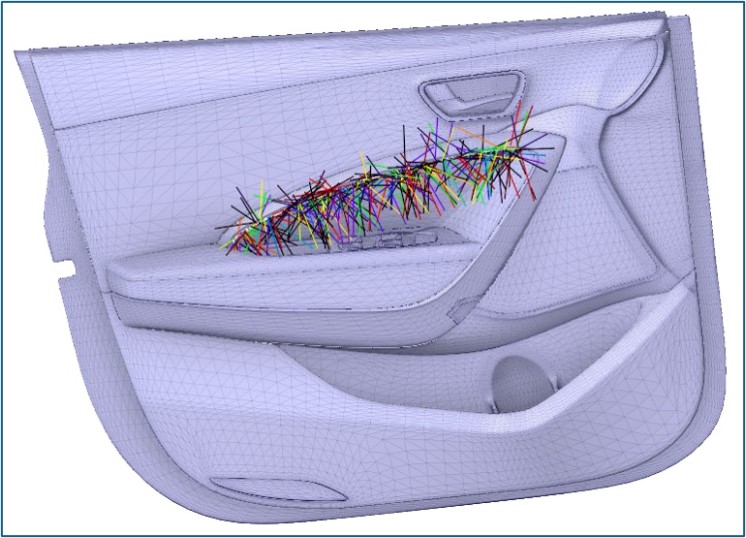

1. Interior Material Modelling

The perception of ambient lighting heavily depends on how light interacts with interior materials. Speos enables accurate modelling of:

• Plastics, coated trims, and textured surfaces
• Leather and soft-touch materials
• Diffusers and lightguide materials
• Spectral reflectance, absorption, and scattering properties

By defining precise optical material properties, engineers can simulate how light propagates, diffuses, and reflects within the cabin. This ensures realistic prediction of brightness distribution, color consistency, and surface interaction.

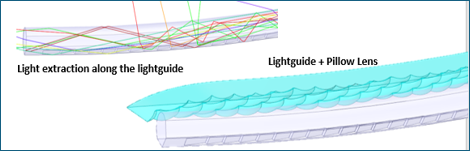

2. Ambient Light Source Definition

Speos allows designers to define ambient light sources directly on surfaces such as lightguides, decorative trims, and panels and accent strips. Using spectral source definitions, teams can evaluate broadband white lighting as well as RGB-based dynamic lighting scenarios — even before final LED selection.

This flexibility supports rapid styling exploration. Designers can iterate between multiple lighting themes, color transitions, and intensity levels without redesigning physical components.

3. Sensors and Human Vision-Based Evaluation

Interior lighting is ultimately judged by human perception. Speos bridges the gap between photometric data and visual experience through:

• Spectral and radiance sensors for quantitative analysis
• Human Vision–based rendering models for perceptual realism

Engineers can simulate how lighting appears from the driver's eye position or from rear-seat occupants, evaluating comfort, glare, and overall ambiance. This human-centric validation ensures that design decisions are based not only on intensity values but also on how the lighting feels inside the cabin.

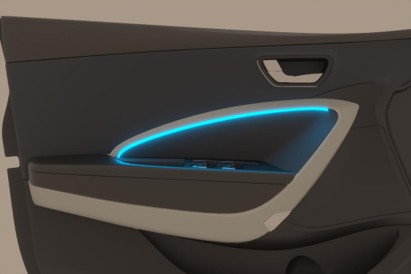

4. Post-Processing and Interior Visualisation

After simulation, Speos offers advanced post-processing tools specifically suited for automotive applications:

• Spectral filtering to isolate and analyse RGB contributions
• Combination of multiple lighting scenarios without rerunning simulations
• High-fidelity interior renderings grounded in human vision models

These capabilities allow teams to assess uniformity, contrast, color blending, and potential visual discomfort. Moreover, the physically accurate renderings serve as powerful communication tools for cross-functional reviews and stakeholder presentations.

Section 03Benefits for Automotive OEMs and Suppliers

Integrating Ansys Speos into early design workflows provides measurable advantages:

• Evaluate lighting concepts before committing to hardware design
• Reduce dependence on costly and time-intensive physical mockups
• Identify glare, reflections, and non-uniform illumination early
• Optimise material–light interactions for premium appearance
• Ensure alignment between styling, ergonomics, and optical performance
• Accelerate design convergence and reduce late-stage rework

By shifting lighting validation upstream, organisations can achieve better quality outcomes with lower development risk.

Conclusion

Ambient lighting is a defining feature of contemporary vehicle interiors, influencing aesthetics, comfort, and brand differentiation. Early-stage evaluation is essential to ensure that design vision translates seamlessly into production reality.

Ansys Speos provides a comprehensive virtual platform to create materials, define spectral light sources, simulate perception through human vision models, and visualise results with physical accuracy. This enables automotive teams to explore, validate, and refine interior ambient lighting concepts well before final design freeze.

The result is an interior experience that is visually compelling, technically optimised, and aligned with both brand identity and occupant comfort. — Dhanush Samarla, CADFEM Optics Practice
