Introduction
Optical waveguides are essential components in photonic integrated circuits (PICs), enabling the precise control and transmission of light for applications in telecommunications, biosensing, quantum computing, and optical computing. Understanding their behavior through simulation is crucial for optimizing their performance. One of the most powerful tools for waveguide design and analysis is Ansys Lumerical, a comprehensive photonic simulation software suite that provides accurate modeling and optimization capabilities.
This blog explores the theoretical background of optical waveguides and demonstrates how to simulate them using Ansys Lumerical MODE and Finite-Difference Time-Domain (FDTD) solvers. Whether you're a researcher, engineer, or student, this guide will help you harness the power of Ansys Lumerical for precise waveguide analysis.
Section 01Theory of Optical Waveguides
An optical waveguide is a structure designed to confine and direct electromagnetic waves in the optical spectrum. It typically consists of a high-refractive-index core surrounded by a lower-refractive-index cladding, ensuring total internal reflection (TIR) and confinement of light.
Key Parameters in Optical Waveguide Design:
Effective Index (n_eff): Determines the propagation characteristics of guided modes.
Mode Field Distribution: Describes how light intensity is distributed within the waveguide.
Cutoff Conditions: Defines the minimum waveguide dimensions required for a particular mode to propagate.
Bending Losses: Occur in curved waveguides due to leakage of guided modes.
Material Dispersion: Affects how different wavelengths travel through the waveguide, influencing overall performance.
Waveguide performance is influenced by material choice, geometry, and operating wavelength, making simulation essential for precise design and optimization before fabrication.
Section 02Optical Waveguide Simulation in Ansys Lumerical
Ansys Lumerical provides industry-leading solvers for waveguide analysis, including:
1. MODE Solver
The MODE solver in Ansys Lumerical is used for eigenmode analysis, helping engineers and researchers compute the effective index, mode profiles, and propagation characteristics of waveguides.
Step-by-Step Simulation Using MODE:
Create the Waveguide Structure
Open Ansys Lumerical MODE.
Define the waveguide geometry (e.g., rectangular, rib, ridge, or slot waveguide).
Assign material properties using built-in or custom material models.
Set Up the Simulation
Choose an appropriate wavelength.
Set boundary conditions (Perfectly Matched Layer (PML) or metal boundary for confinement).

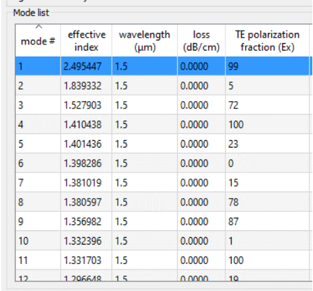

Select the number of modes to calculate.
Run the Eigenmode Solver
Compute the fundamental and higher-order modes.
Analyze the effective index and mode profiles.
Optimize the Design
Adjust waveguide dimensions to control mode confinement and propagation loss.
Evaluate modal loss and coupling efficiency for improved performance.
2. FDTD Solver for Advanced Analysis
The Finite-Difference Time-Domain (FDTD) solver in Ansys Lumerical is ideal for full-wave electromagnetic simulations, capturing reflections, losses, and coupling effects in waveguides.
Advanced Waveguide Analysis Using FDTD:

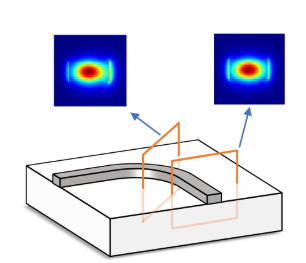

Bend Losses: Simulate curved waveguides and assess leakage.
Mode Coupling: Analyze interactions between multiple waveguides.
Scattering and Reflection: Study the impact of structural imperfections.
Resonator Design: Optimize photonic crystal and ring resonator structures.

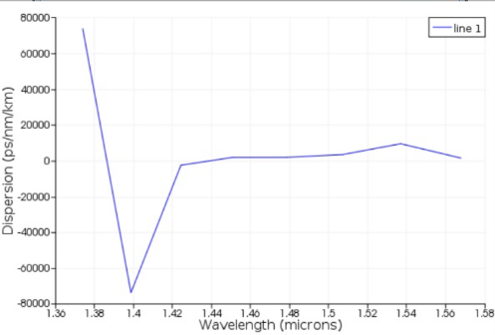

Dispersion: Lumerical FDE will be utilized to study the modes of a SOI waveguide and analyze its dispersion properties.
By combining MODE solver for eigenmode analysis and FDTD solver for full-wave simulations, engineers can achieve a detailed understanding of waveguide behavior, ensuring optimal design before fabrication.
Section 03Key Benefits of Using Ansys Lumerical for Waveguide Design
Highly Accurate Design Validation: Ansys Lumerical provides industry-leading accuracy, allowing engineers to simulate complex optical interactions with confidence.
Cost Reduction & Faster Development: Virtual simulations significantly cut down physical prototyping costs, accelerating the product development cycle.
Seamless Integration with Multiphysics Tools: Works alongside Ansys Lumerical CHARGE, Lumerical INTERCONNECT, and Ansys Zemax for comprehensive electro-optical simulation.
Optimization of Waveguide Performance: Engineers can fine-tune waveguide parameters to achieve minimal insertion loss, improved mode confinement, and optimized propagation efficiency.
Support for Emerging Technologies: Essential for applications in LiDAR, quantum computing, AR/VR, biosensing, and telecommunications, ensuring future-proof designs.
Conclusion
Simulating optical waveguides in Ansys Lumerical enables precise design, optimization, and validation before fabrication, significantly reducing costs and improving performance. By leveraging the MODE solver for eigenmode analysis and the FDTD solver for full-wave electromagnetic simulations, engineers and researchers can design highly efficient waveguides for photonics, integrated optics, and telecommunications.
Interested in learning more? Join our webinar: "Unlocking the Power of Photonics with Lumerical: A Beginner's Guide." Register now to gain hands-on insights into waveguide simulation and photonic design!
