Enhancing Mining Equipment Efficiency: DEM and FEM Coupling for Vibrating Screens

In the competitive mining industry, optimizing equipment performance isn’t just about increasing throughput—it’s about reliability, safety, and cost-effective design. One advanced approach that’s reshaping equipment development is the coupling of the Discrete Element Method (DEM) and Finite Element Method (FEM). In this blog post, we explore how DEM-FEM coupling—using Ansys Rocky for DEM and Ansys Mechanical for FEM—enhances the design and performance of vibrating screens, a critical piece of mineral processing equipment.

Section 01The Role of Vibrating Screens in Mining

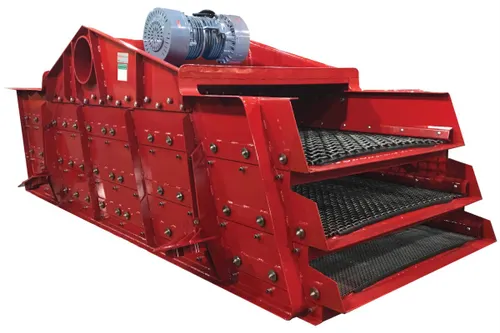

Vibrating screens are essential in the mining process. They efficiently separate and classify particles based on size, ensuring that ore processing systems work at their optimum capacity. However, the dynamic environment on the screen—characterized by continuous vibration and particle impacts—creates challenges in both separation efficiency and structural integrity. This is where advanced simulation comes into play.

Section 02Understanding DEM and FEM

Discrete Element Method (DEM) with Ansys Rocky

DEM is a powerful numerical tool that models individual particle interactions. Ansys Rocky, the industry-leading DEM simulation tool, accurately predicts the behaviour of granular materials. It allows engineers to:

• Simulate Particle Flow: Analyse trajectories, collisions, and segregation patterns.
• Assess Separation Efficiency: Evaluate how different operating conditions affect the screening process.
• Optimize Particle-Equipment Interaction: Determine the impact forces and how they influence wear on the screen.

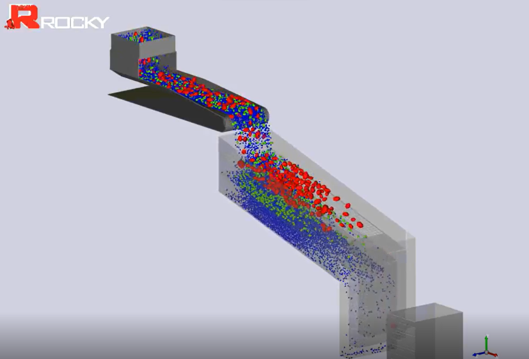

For example, by simulating ore particles moving over a vibrating screen, Ansys Rocky can help identify regions of high particle concentration and impact, providing key insights into the efficiency of separation and potential stress concentrations on the screen surface.

Finite Element Method (FEM) with Ansys Mechanical

FEM, on the other hand, focuses on the structural response of the vibrating screen. Ansys Mechanical is a robust tool for predicting:

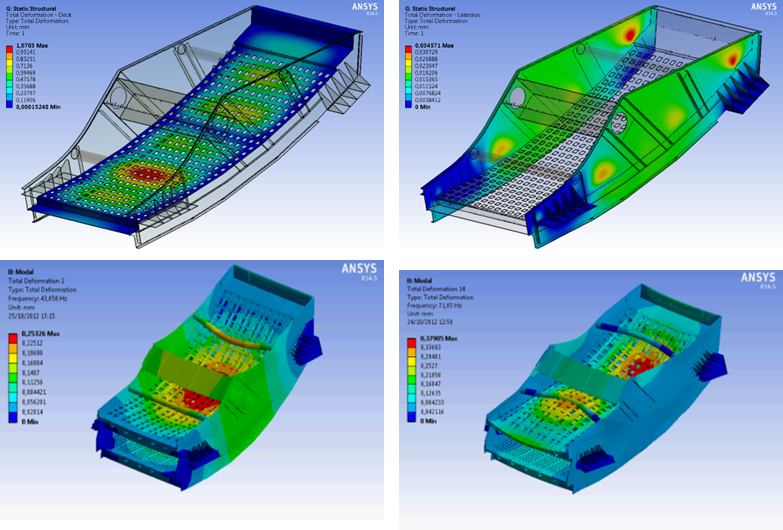

• Stress and Strain Distribution: Determine how the screen structure responds to dynamic loads.
• Vibration Analysis: Identify natural frequencies and ensure the screen design avoids resonant conditions.
• Structural Durability: Evaluate potential failure modes, allowing for proactive design improvements.

By using FEM, engineers can ensure that the screen’s design withstands the forces induced by particle impacts, ultimately leading to longer equipment life and improved safety.

Section 03The Power of Coupling DEM and FEM

The real magic happens when DEM and FEM are coupled. This integrated simulation approach allows for a complete understanding of both the particle behavior and the structural response. Key benefits include:

• Comprehensive Analysis of Equipment Performance
  Enhanced Understanding of Interactions: The integrated simulation analyzes how granular materials interact with structural components. This detailed view reveals how particle flows affect stress and strain, leading to smarter design decisions.
• Improved Design Efficiency
  Optimization of Equipment Design: By simulating both the flow of bulk materials and their impact on structures, engineers can optimize design parameters—such as screen shape, mesh size, and vibration settings—to maximize separation efficiency and minimize material wastage.
• Accurate Stress and Strain Predictions
  Structural Integrity Assessment: FEM allows for precise evaluation of stresses and deformations. This insight helps identify potential failure points in vibrating screens and similar equipment, guiding modifications to enhance durability and safety.
• Reduced Prototyping Costs
  Virtual Testing: Advanced simulation reduces the need for extensive physical prototyping. Engineers can test a range of loading and vibration scenarios virtually, saving both time and money while accelerating time-to-market.
• Enhanced Simulation Capabilities
  Multi-Physics Integration: The coupling of ANSYS Rocky with ANSYS Mechanical supports comprehensive multi-physics analyses. In addition to structural response, you can also incorporate fluid dynamics (via SPH) and thermal effects, providing a complete picture of equipment performance.
• Improved Operational Reliability
  Predictive Maintenance: Simulations that accurately predict load distributions and wear patterns enable the implementation of predictive maintenance strategies, reducing downtime and maintenance costs.
• Real-Time Data Utilization
  Dynamic Simulations: The coupled approach supports real-time simulations that account for varying operational conditions—such as changes in material properties or flow rates—ensuring that the design remains robust under dynamic working environments.
• Increased Safety Standards
  Risk Mitigation: By accurately predicting stress distributions and potential failure modes, engineers can design equipment that withstands extreme conditions. This proactive approach enhances safety for both operators and the overall mining process.

For instance, a case study in the mining industry showed how using coupled DEM-FEM simulations led to a more efficient vibrating screen design, with improved separation efficiency and a significant reduction in unexpected downtime due to structural failures.

Section 04Why Choose Ansys Rocky and Ansys Mechanical?

Ansys Rocky and Ansys Mechanical offer a seamless workflow for coupling DEM and FEM:

• User-Friendly Integration: The tools are designed to work together within the Ansys Workbench environment, simplifying the process of transferring force data and aligning simulation parameters.
• Scalable and Accurate: With advanced GPU acceleration in Rocky and robust structural analysis in Mechanical, these tools handle large-scale simulations with millions of particles and complex geometries.
• Proven Track Record: From optimizing vibrating screens to simulating excavator buckets and crushers, the coupled simulation approach has consistently delivered actionable insights that lead to better-performing mining equipment.

Conclusion

In a rapidly evolving mining industry, leveraging coupled DEM-FEM simulations is no longer optional—it’s essential. By using Ansys Rocky and Ansys Mechanical, companies can design vibrating screens that not only improve separation efficiency but also ensure structural durability and operational safety. This integration empowers engineers to innovate confidently, reducing both development costs and downtime.

Ready to revolutionize your equipment design with advanced simulation? Contact us today to learn how Ansys simulation tools can drive efficiency and reliability in your mining operations.
