ELECTROMAGNETIC SIMULATION SOFTWARE

Electromagnetic simulation engineers require the ability to run simulations that are both accurate and which execute in a reasonably fast time period. At low frequencies, it also becomes essential to have a path whereby mechanical effects can be captured and co-simulated for complete multi-physics simulation.

Creating a virtual prototype of electromagnetic components or electronic products to permit testing and evaluation without having to build an expensive hardware prototype. Developers can also incorporate features and robustness to prevent issues that, if discovered only late in the design cycle at the physical prototype stage, would result in significant schedule delays and cost overruns.

Capabilities

Advanced Magnetic Modeling

Compute sophisticated simulation parameters, including core loss, permanent magnet four-quadrant simulation, demagnetization and magnetostriction analysis, Litz wire loss, and manufacturing influences on loss calculation.

Template Based Analytical Analysis

RMxprt helps in evaluating concept level electromagnetic analytical analysis quickly and exporting it to Ansys Maxwell creates a ready-to-run FEM simulation.

topo

Template Based Magnetic and Thermal Topologies

A variety of motor types are available for electromagnetic analysis, and the design process is made easier due to the inclusion of cooling and housing templates.

Antenna Analysis with platform effect

Antennas and Antenna Arrays are analysed considering all EM effects of adjacent antennas including the platform effect of installed antennas with high accuracy.

RLGC extraction

Q3D allows us to extract the parasitics of the packages and power electronic circuits.

signal

Signal Integrity

Conducting signal integrity analysis in electromagnetic simulation software involves assessing critical nets or high-speed channels within a PCB or even at the end-to-end system level. This analysis encompasses both time domain and frequency domain evaluations to ensure the integrity of signals. It involves examining the combination of interconnects throughout the signal path to optimize performance and mitigate any potential issues.

Complex Cable Modeling and Wire Harness EM Analysis

EM Harness Solver allows modeling of complex cables like twisted pair, braided cables, shielded cables and complex wire harness for electromagnetic simulation analysis like Signal Integrity and Crosstalk.

Electronics Products

Ansys HFSS

FEM-based electromagnetic simulation with HFSS offers comprehensive 3D design, modeling, and analysis of high-frequency components, along with diverse optimization capabilities to meet specific design requirements. The Hybrid Solving technology ensures precise simulations within an optimal timeframe.

Ansys Q3D

Utilizing a Finite Element Method (FEM) based simulation tool enables thorough analysis of electronic component behavior. This tool facilitates the extraction of parasitic RLGC parameters across frequencies, aiding in the refined design of power electronics structures for enhanced performance and efficiency.

Ansys SIwave

FEM based simulation tool to analyse the Signal Integrity and Power Integrity of electronic components and their optimization to maximize the signal or power flow through Nets. This electromagnetic simulation tool has the capability to analyse and validate power delivery networks and high speed designs.

Ansys EMC Plus

It is an FDTD-based simulation tool to analyze the high-frequency behaviour of cables and Wire harnesses to understand the Electromagnetic emissions and compatibility to support EMC or E3 Certification for full system-level modeling.

Ansys Charge Plus

Charge Plus is combination of multiple solvers for analysis of Charging – discharging, particle transport, Arcing etc for risk assesment.

Ansys Nuhetrz

Nuhertz fully automated solutions for RF, Microwave and Digital filters from S-parameters to physical realization and optimization with automated integration with HFSS.

Ansys Synmatrix

Synmatrix fully automated AI/ML based solution for design and optimization of 3D filters with automated workflow to export design to HFSS for realistic filter realization with Hardware integration for optimal filter tuning.

Ansys Maxwell

Ansys Maxwell is a low frequency electromagnetic finite element based modeling and simulation tool. Its solver technology is tuned to low frequency electromechanical devices and electric machines where mechanical and electromagnetic phenomena interact as part of the product’s function. Electromagnetic field solver for electric machines, actuators, wireless power charging, magnetic latching, transformers, busbars and power converters. It solves Static, Time varying electric/magnetic fields and frequency domain analysis. Additionally, Maxwell provides specific design interfaces for planar components and rotating machines.

Ansys MotorCAD

Ansys Motor-CAD is a market-leading concept design tool of electromagnetic simulation, that enables motor designers to rapidly evaluate motor topologies and concepts across the full operating range and assess the multiphysics characteristics of their designs. Motor-CAD utilizes combined 2D finite element and analytical modelling to enable fast and accurate Multiphysics motor simulation. Rapid computation speeds reduce the possibility of delays and expensive design revisions later on, while multiphysics analysis up front allows motor designers to innovate and explore the whole design space in search of the best solution.

Applications

Optimizing Rare Earth Magnet Usage in E-Motor Design With Ansys
Electric motors (E-motors) account for a significant portion of global energy consumption, comprising 70% of the electricity used in the industrial sector.
View Application
Superconducting Quantum Circuits Analysis by combining Ansys with Qiskit Metal
Superconducting quantum circuits (SQC), particularly those based on qubits, are at the core of modern quantum computing.
View Application
electromagnetic
Electromagnetic Actuators
Electromagnetic Actuators are used to convert electrical energy to linear mechanical motion. Simulation helps to analyze the performance in terms of mechanical force requirements, number of turns, materials, and integration of control circuitry.
View Application
switchgear

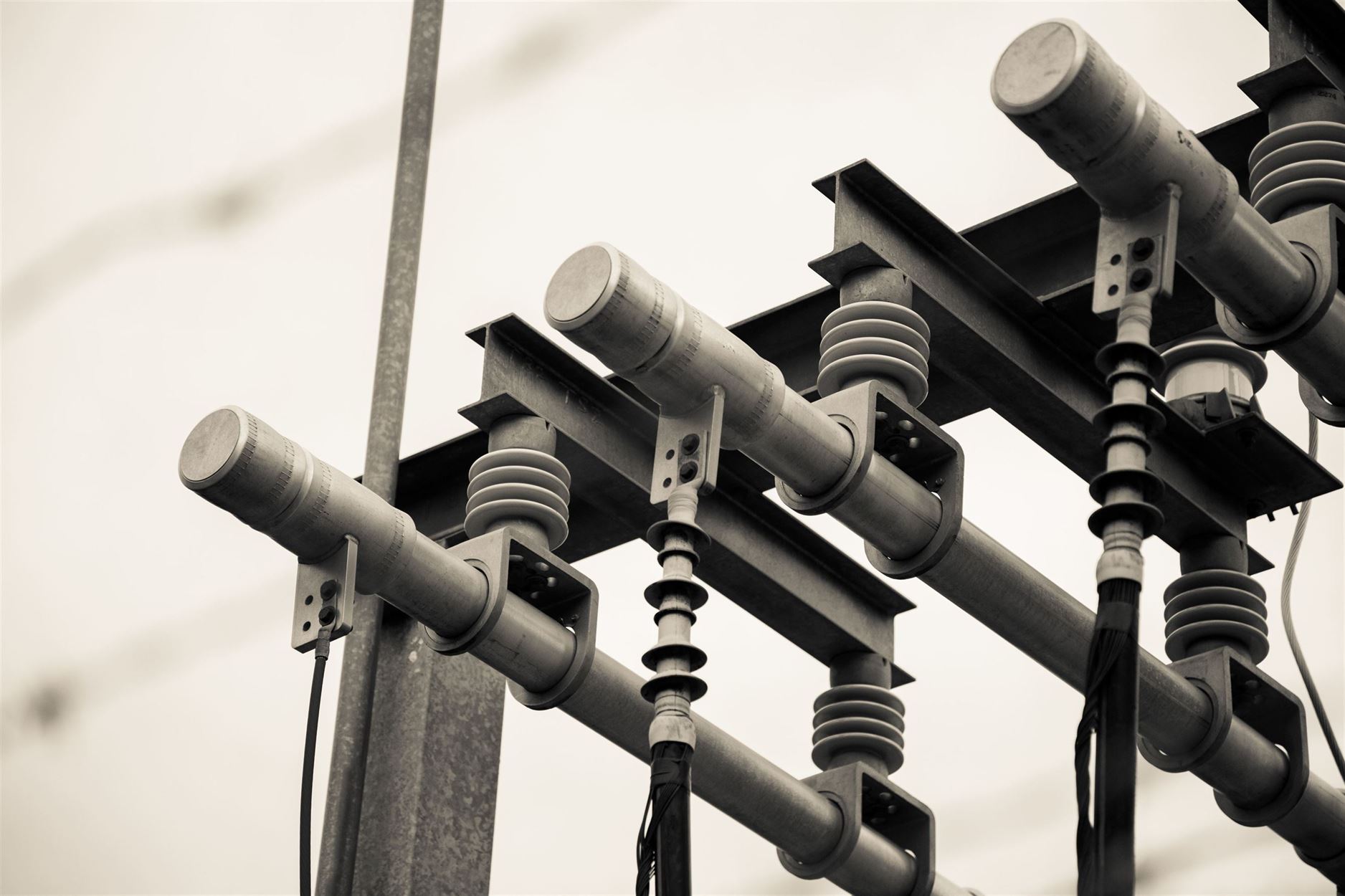

Switch Gear Components
Computation of Electric stress distribution in the insulating medium greatly helps in analyzing partial discharge and identifying proper insulating material.
View Application
Magnetic Sensors
E-magnetic sensors are majorly used to identify the rotor position and current sensing in electric machines. Hall and reluctance sensors are the best examples.
View Application
power
Power Electronic Components
Planar inductors and transformers design plays a critical role in electronic control design. Simulation enables the user to identify the effects due to fringing flux, circulating currents, winding configurations, eddy and proximity, and non-linear materials at the early stage of the design.
View Application
