Electromagnetic simulation engineers require the ability to run simulations that are both accurate and which execute in a reasonably fast time period. At low frequencies, it also becomes essential to have a path whereby mechanical effects can be captured and co-simulated for complete multi-physics simulation.
Creating a virtual prototype of electromagnetic components or electronic products to permit testing and evaluation without having to build an expensive hardware prototype. Developers can also incorporate features and robustness to prevent issues that, if discovered only late in the design cycle at the physical prototype stage, would result in significant schedule delays and cost overruns.
Compute sophisticated simulation parameters, including core loss, permanent magnet four-quadrant simulation, demagnetization and magnetostriction analysis, Litz wire loss, and manufacturing influences on loss calculation.
RMxprt helps in evaluating concept level electromagnetic analytical analysis quickly and exporting it to Ansys Maxwell creates a ready-to-run FEM simulation.
A variety of motor types are available for electromagnetic analysis, and the design process is made easier due to the inclusion of cooling and housing templates.
Antennas and Antenna Arrays are analysed considering all EM effects of adjacent antennas including the platform effect of installed antennas with high accuracy.
Q3D allows us to extract the parasitics of the packages and power electronic circuits.
Conducting signal integrity analysis in electromagnetic simulation software involves assessing critical nets or high-speed channels within a PCB or even at the end-to-end system level. This analysis encompasses both time domain and frequency domain evaluations to ensure the integrity of signals. It involves examining the combination of interconnects throughout the signal path to optimize performance and mitigate any potential issues.
EM Harness Solver allows modeling of complex cables like twisted pair, braided cables, shielded cables and complex wire harness for electromagnetic simulation analysis like Signal Integrity and Crosstalk.
FEM-based electromagnetic simulation with HFSS offers comprehensive 3D design, modeling, and analysis of high-frequency components, along with diverse optimization capabilities to meet specific design requirements. The Hybrid Solving technology ensures precise simulations within an optimal timeframe.
Utilizing a Finite Element Method (FEM) based simulation tool enables thorough analysis of electronic component behavior. This tool facilitates the extraction of parasitic RLGC parameters across frequencies, aiding in the refined design of power electronics structures for enhanced performance and efficiency.
FEM based simulation tool to analyse the Signal Integrity and Power Integrity of electronic components and their optimization to maximize the signal or power flow through Nets. This electromagnetic simulation tool has the capability to analyse and validate power delivery networks and high speed designs.
It is an FDTD-based simulation tool to analyze the high-frequency behaviour of cables and Wire harnesses to understand the Electromagnetic emissions and compatibility to support EMC or E3 Certification for full system-level modeling.
Charge Plus is combination of multiple solvers for analysis of Charging – discharging, particle transport, Arcing etc for risk assesment.
Nuhertz fully automated solutions for RF, Microwave and Digital filters from S-parameters to physical realization and optimization with automated integration with HFSS.
Synmatrix fully automated AI/ML based solution for design and optimization of 3D filters with automated workflow to export design to HFSS for realistic filter realization with Hardware integration for optimal filter tuning.
Ansys Maxwell is a low frequency electromagnetic finite element based modeling and simulation tool. Its solver technology is tuned to low frequency electromechanical devices and electric machines where mechanical and electromagnetic phenomena interact as part of the product’s function. Electromagnetic field solver for electric machines, actuators, wireless power charging, magnetic latching, transformers, busbars and power converters. It solves Static, Time varying electric/magnetic fields and frequency domain analysis. Additionally, Maxwell provides specific design interfaces for planar components and rotating machines.

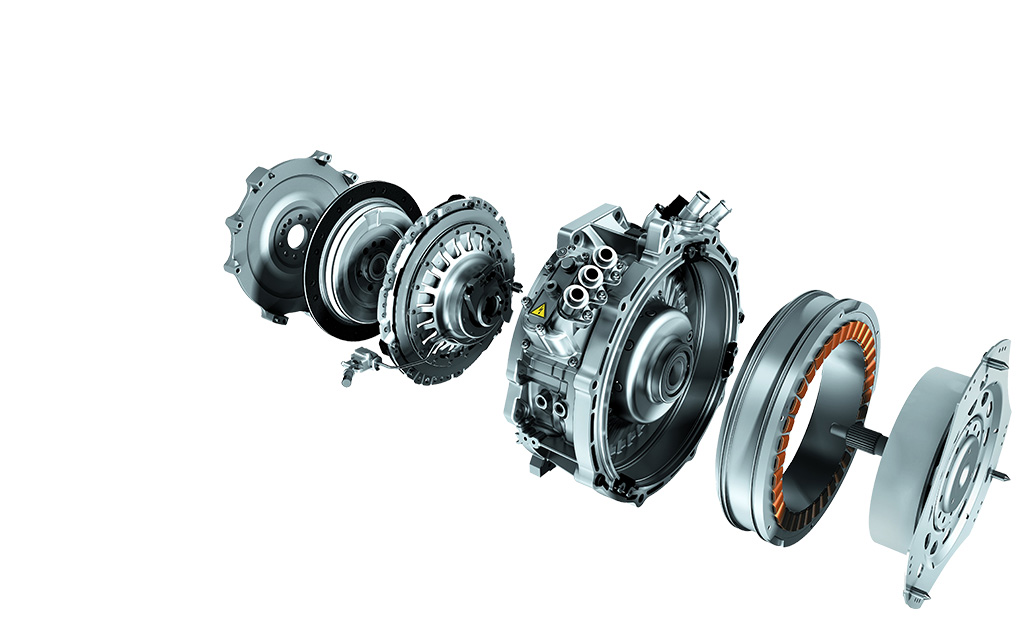

Ansys Motor-CAD is a market-leading concept design tool of electromagnetic simulation, that enables motor designers to rapidly evaluate motor topologies and concepts across the full operating range and assess the multiphysics characteristics of their designs. Motor-CAD utilizes combined 2D finite element and analytical modelling to enable fast and accurate Multiphysics motor simulation. Rapid computation speeds reduce the possibility of delays and expensive design revisions later on, while multiphysics analysis up front allows motor designers to innovate and explore the whole design space in search of the best solution.
